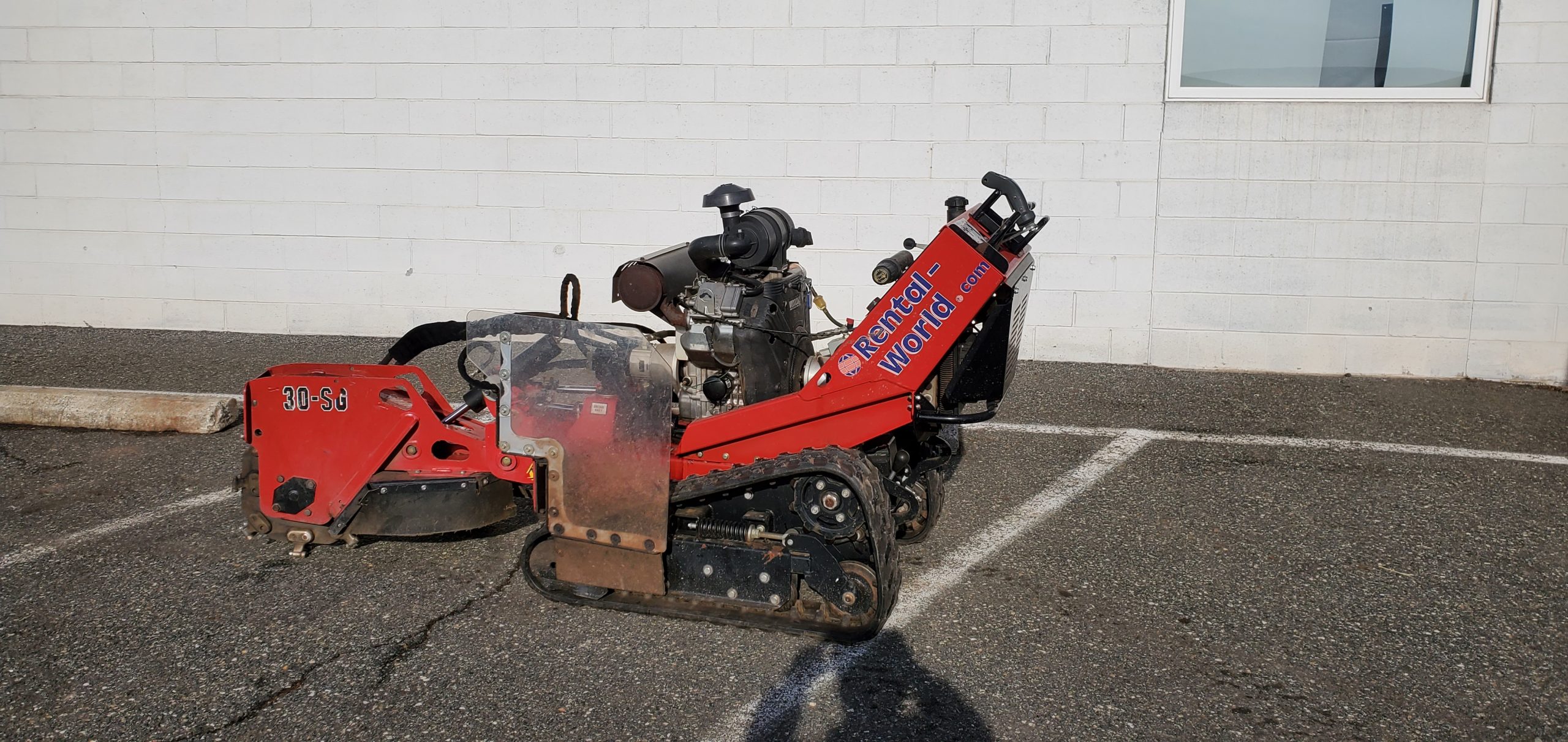

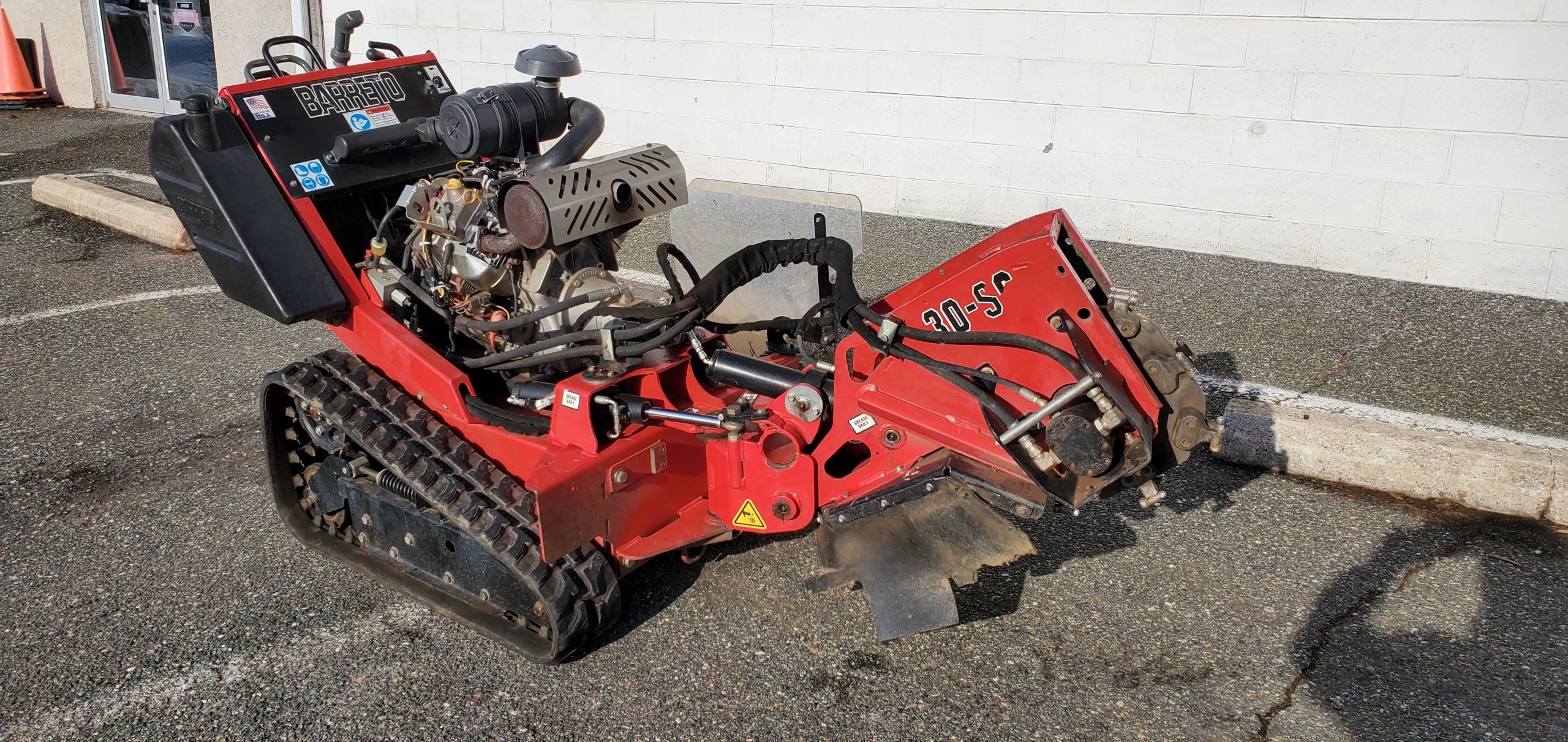

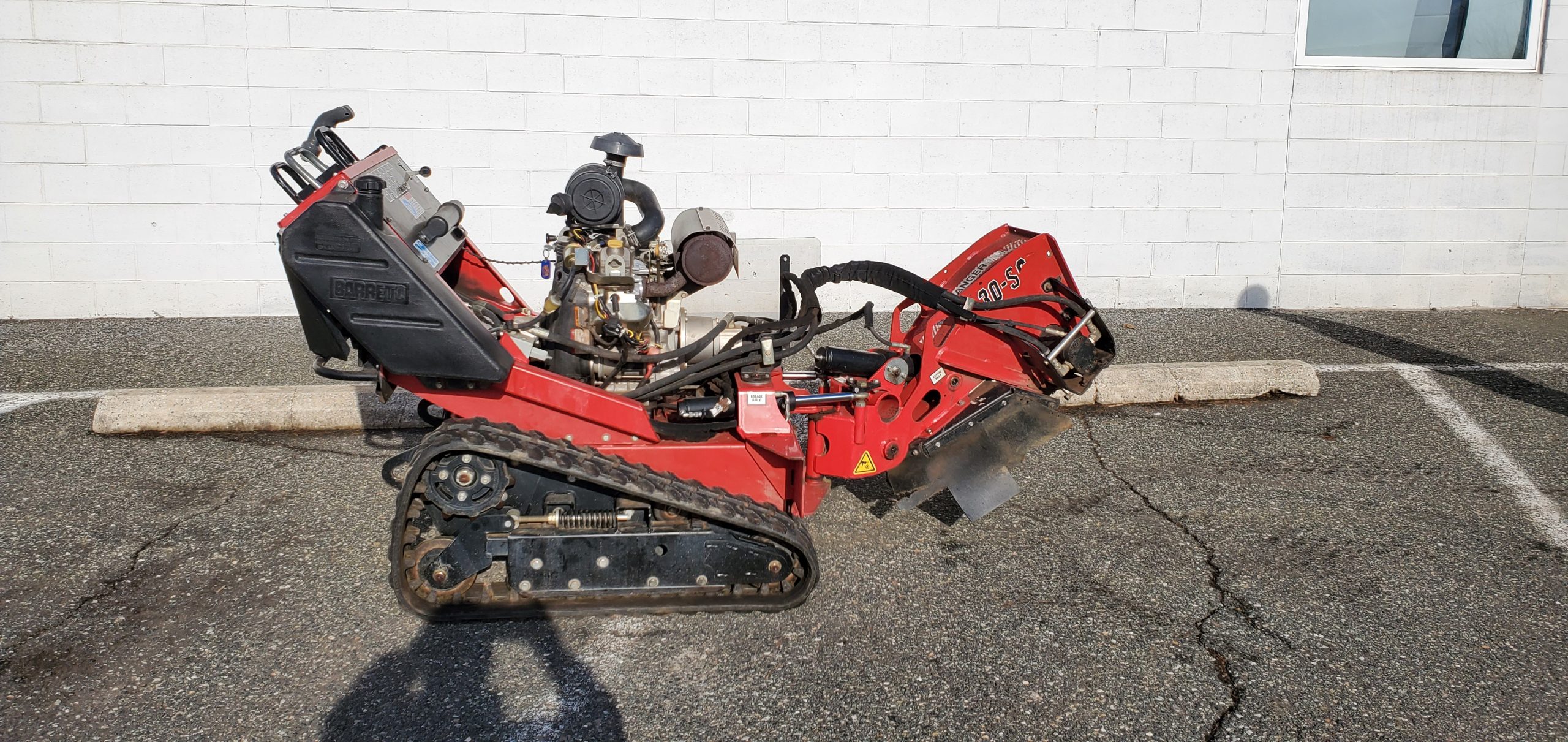

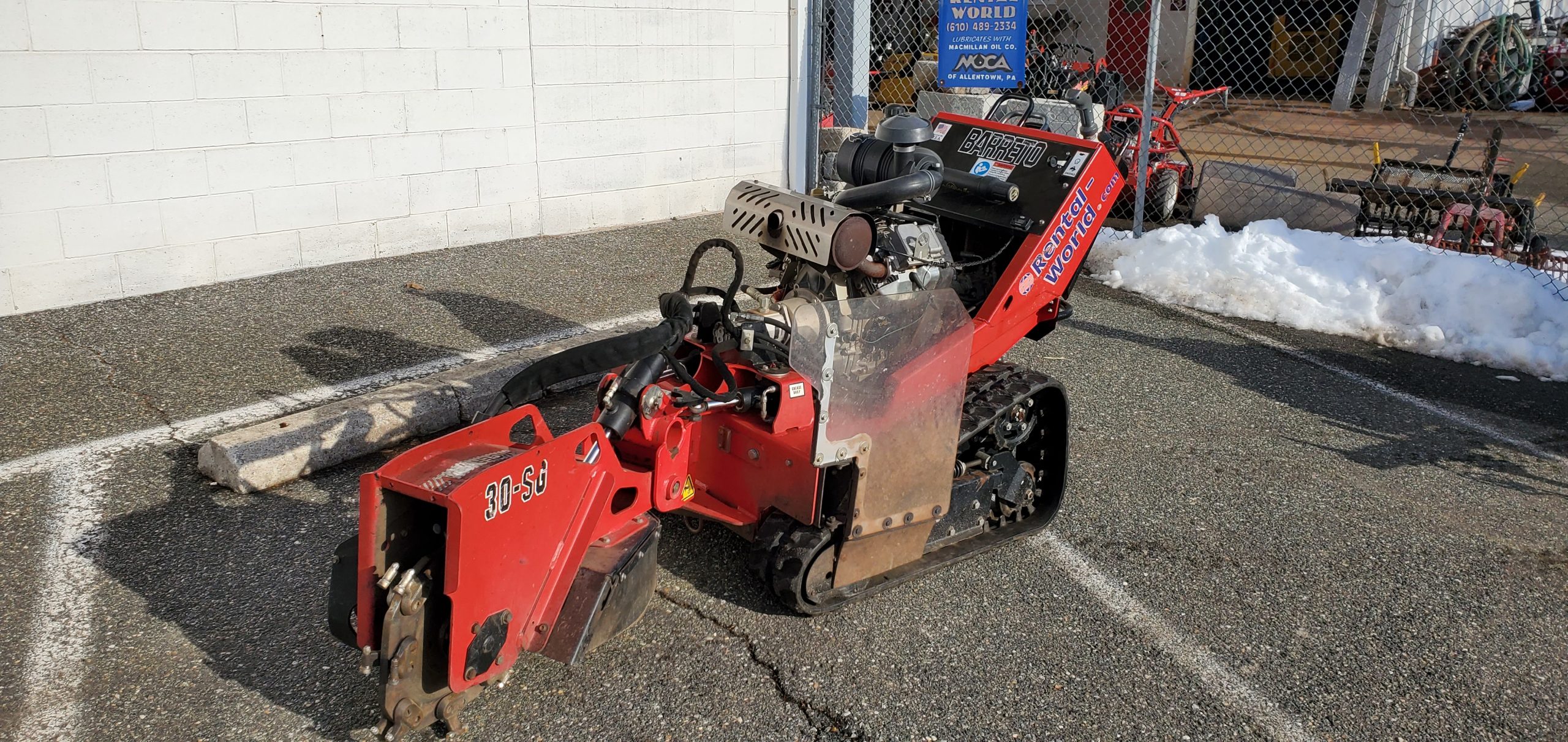

Stump Grinder: Hydraulic w/ Tracks

$330.00

FEATURES

  • Easy controls operate the track drive and cutter wheel
  • Time-tested track design absorbs impact and provides stability
  • Center-mounted cutter wheel provides 134º head swing
  • Gear pumps coupled to the engine drive the cutter wheel, tilt, and swing
  • Counterbalance valves on each track drive prevent motors from slipping

    SPECIFICATIONS

    ENGINE:

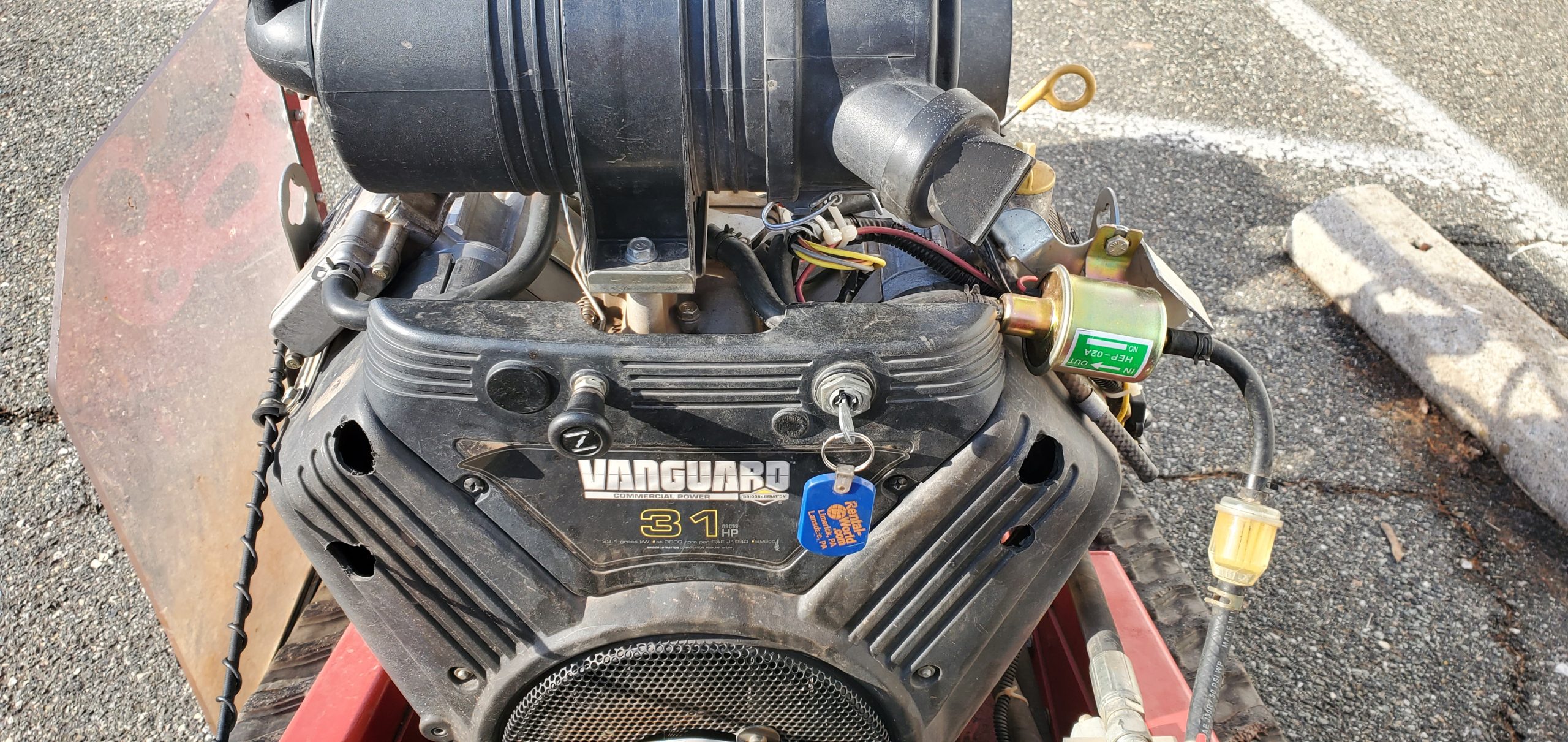

    Briggs & Stratton Vanguard V-Twin 31hp

    DETAILS:
    Height: 49.5″
    Length (head to side): 79″
    Length (head straight): 98″
    Width: 35.5″
    Weight: 1,700 lb.
    Hydraulic Reservoir: 14 gallons
    Hydraulic Flow to Head: 13.3gpm
    Track Width: 7.1″
    Total Ground Contact: 470 sq. in.
    Ground Drive Forward: 290 ft/min
    Ground Drive Reverse: 180 ft/min

    WHEEL SPECIFICATIONS

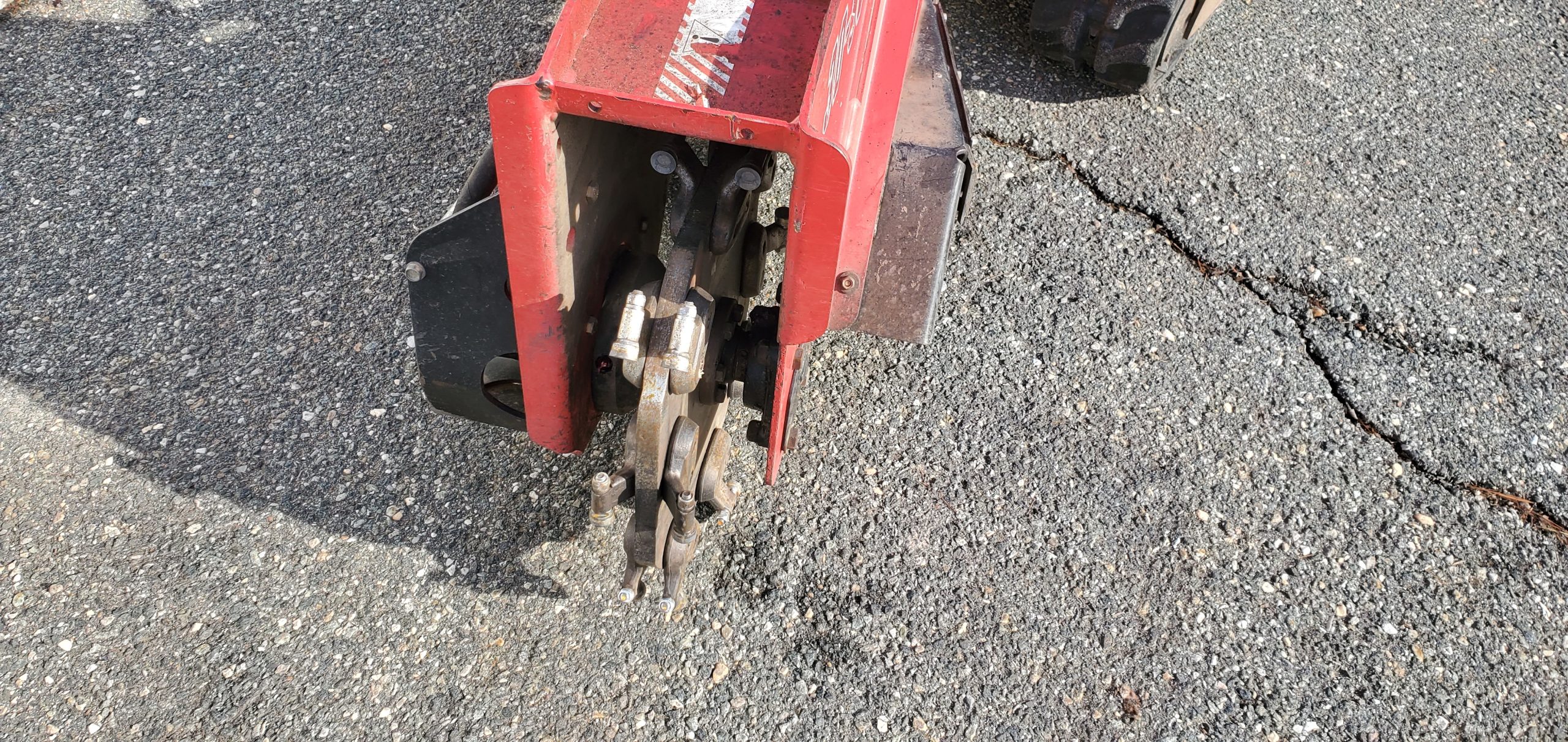

    Cutting Wheel: 19.2″ diameter to tooth
    Cutting Teeth: 0.750 thick, 16 green teeth
    Cutting Depth: 12″
    Cutting Height: 32″
    Head Swing: 134˚, 99.7″ arc

    INSTRUCTIONS: 30SGB-OPERATORS-MANUAL

SKU: 4595 Category: Tag:
