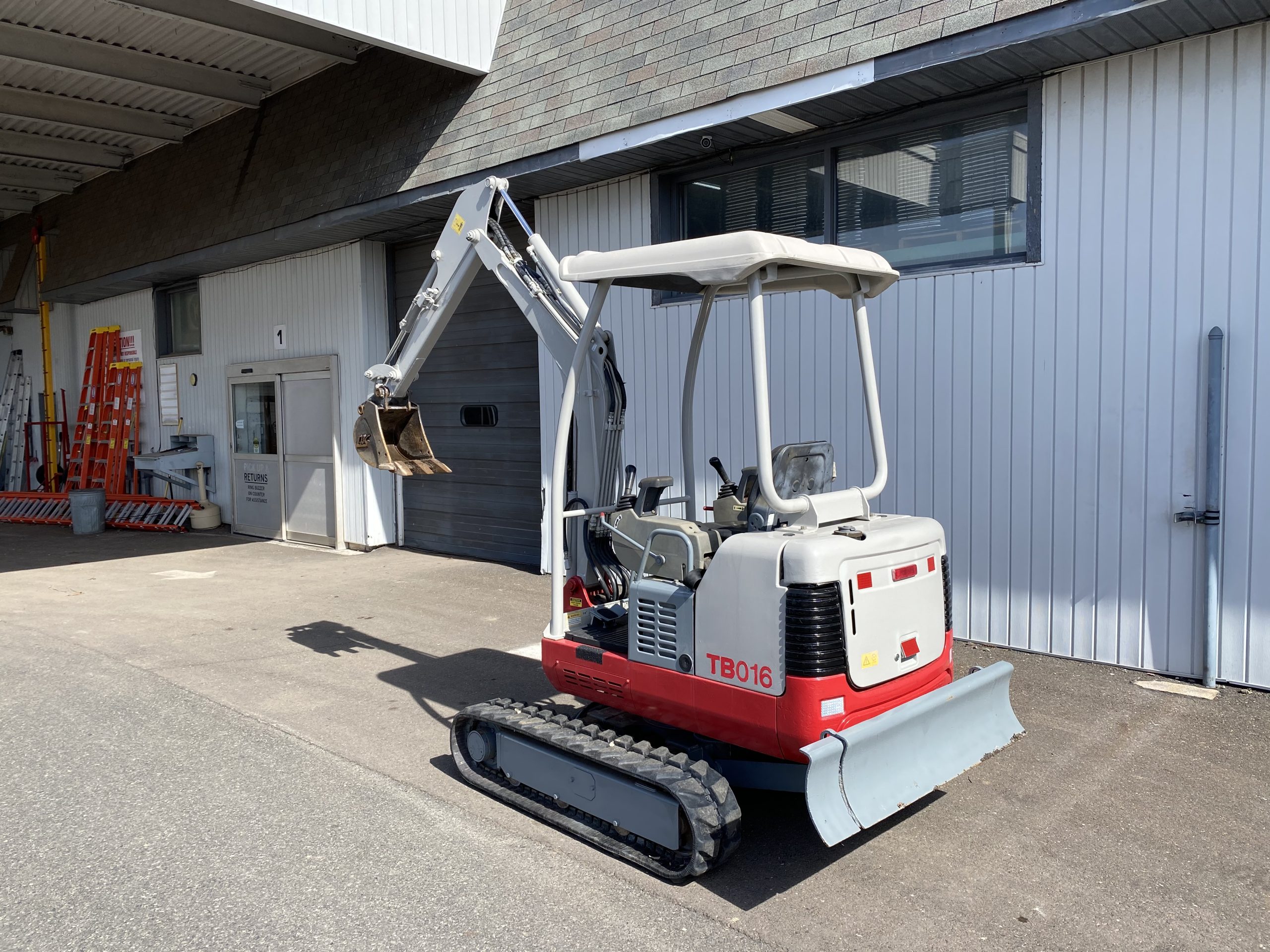

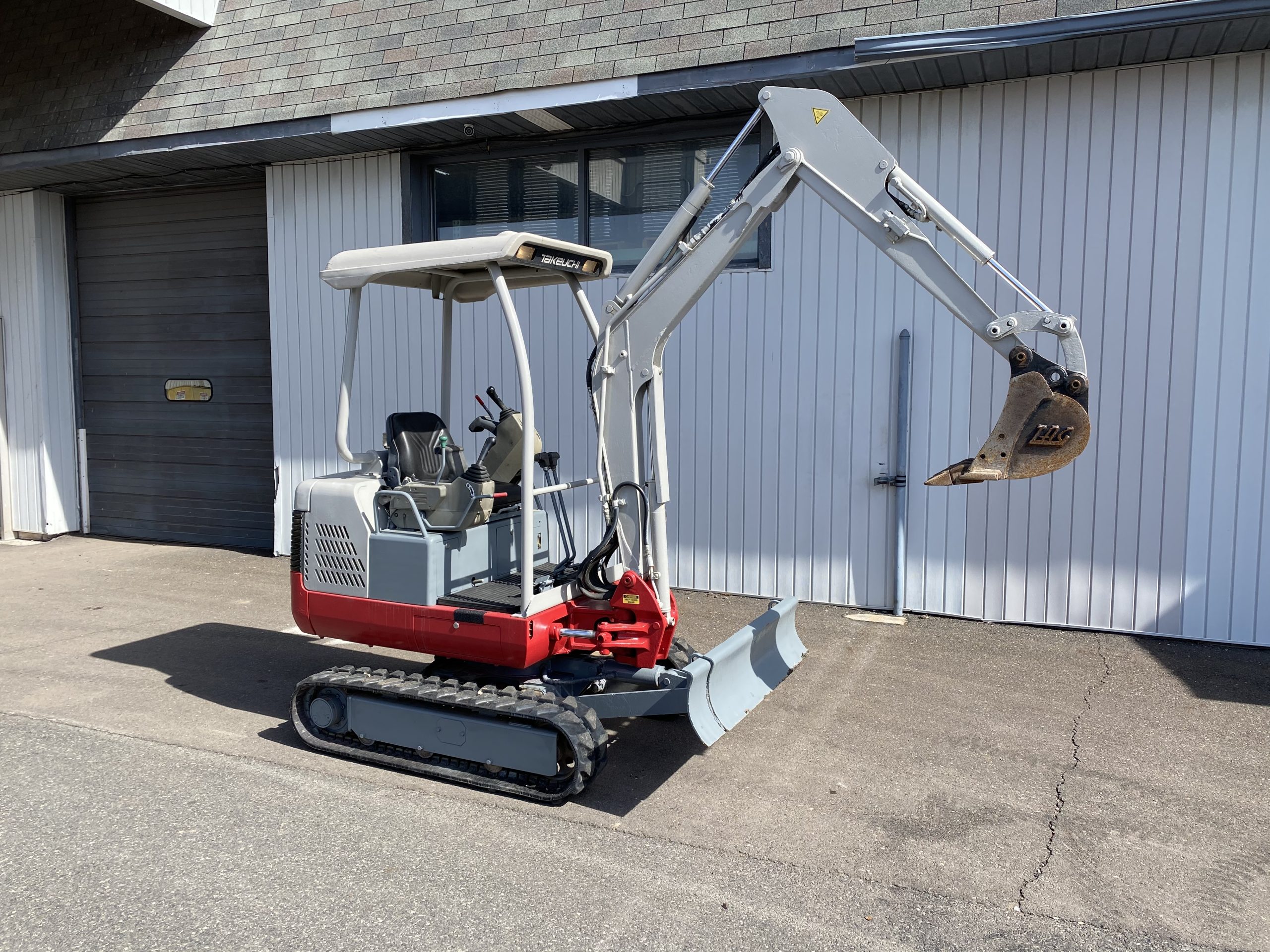

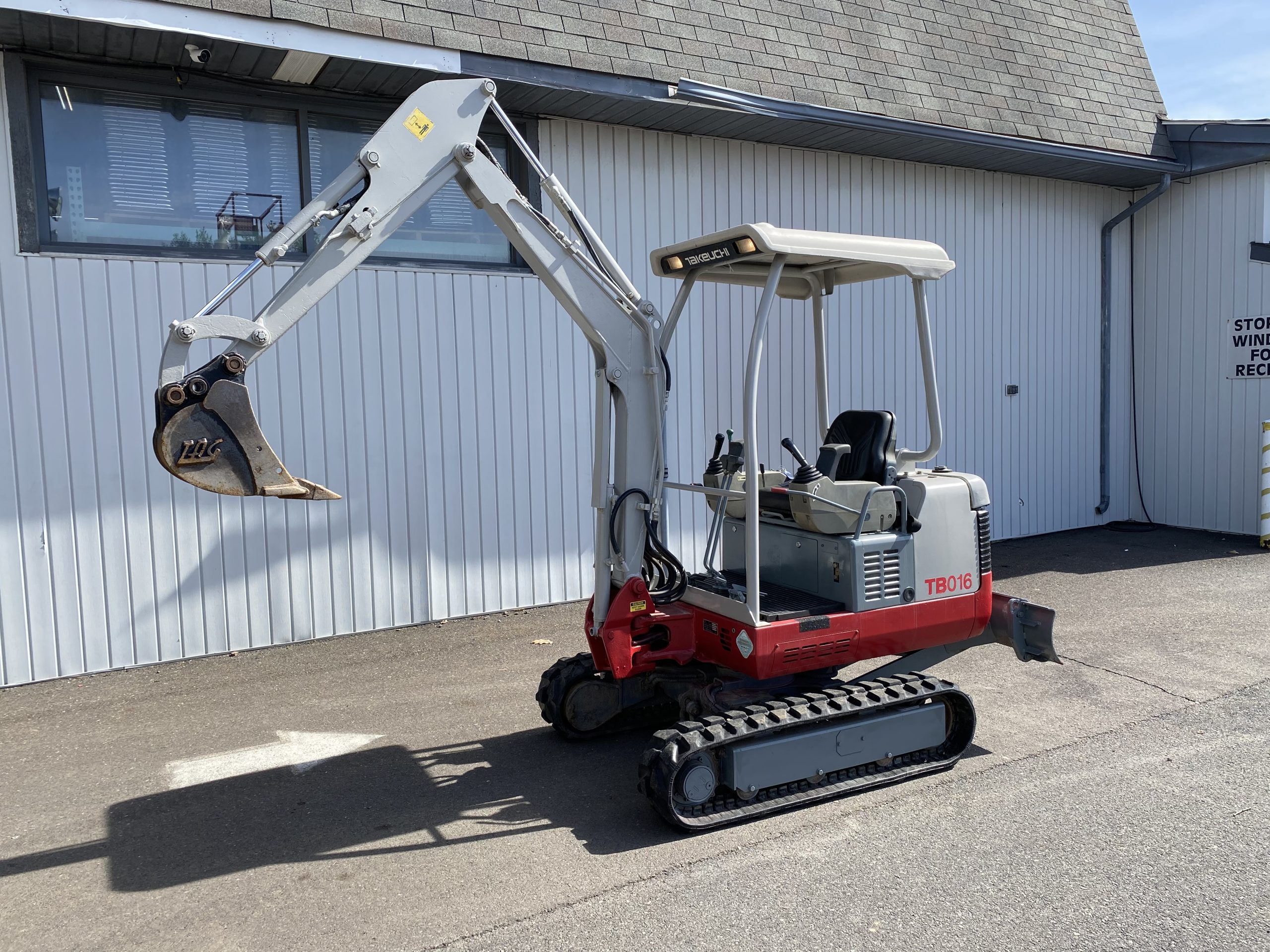

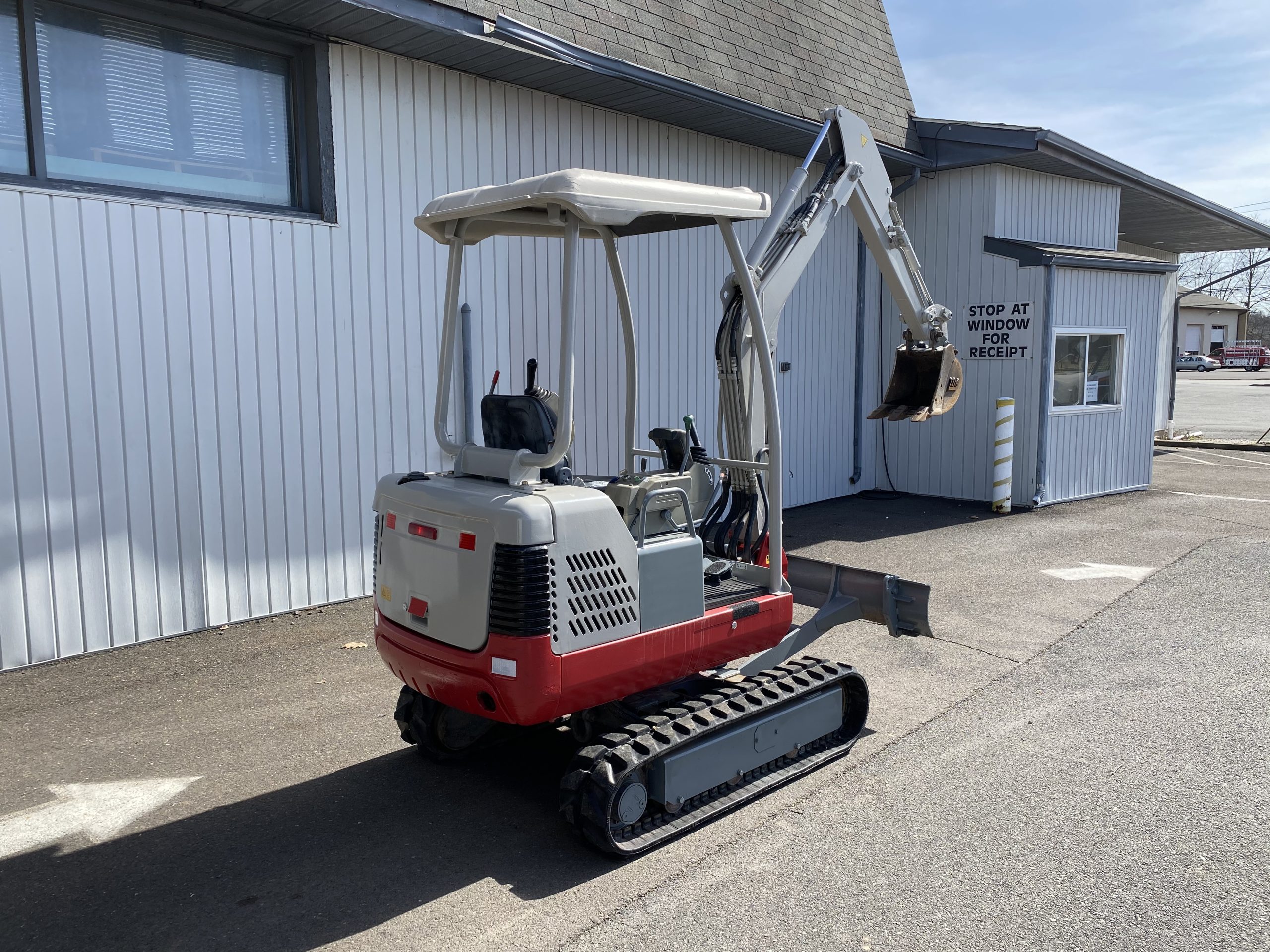

Excavator – Takeuchi Model 216
$340.00
| OPERATING PERFORMANCE |
|
|
| Operating Weight |
3,900 lb |
(1,770 kg) |
| Max. Bucket Breakout Force |
4,250 lb |
(1,928 kg) |
| Max. Arm Digging Force |
1,843 lb |
(836 kg) |
| Arm Length |
3 ft 8.5 in |
(1,130 mm) |
| Slew Speed |
9.2 rpm |
|
| Traction Force |
4,361 lb |
(1,978 kg) |
| Ground Pressure |
4.3 psi |
29.4 kPa |
| Travel Speed – Low |
1.4 mph |
(2.2 km / hr) |
| Travel Speed – High |
2.6 mph |
(4.2 km / hr) |
| HYDRAULIC SYSTEM |
|
|
| Total Hydraulic Flow |
13.4 gpm |
(50.9 L / min) |
| Auxiliary Hydraulic Flow |
8.9 gpm |
(33.6 L / min) |
| Hydraulic System Pressure |
3,046 psi |
(21.0 Mpa) |
| ENGINE |
|
|
| Model / Make |
Yanmar / 3TNV74 |
|
| Displacement |
60.2 cu in |
(.98 L) |
| Horsepower @ 2,400 rpm |
15 hp |
(11.2 kW) |
| Max. Torque @ 1,800 rpm |
38.2 ft-lb |
(51.8 Nm) |
| FLUID CAPACITIES |
|
|
| Engine Lubrication |
4.5 qt |
(4.3 L) |
| Cooling System |
4.0 qt |
(3.8 L) |
| Fuel Tank Capacity |
5.8 gal |
(22.0 L) |
| Hydraulic Reservoir Capacity |
4.2 gal |
(16.0 L) |
| Hydraulic System Capacity |
6.5 gal |
(24.5 L) |
TB216 Dimensions
| MACHINE DIMENSIONS |
|
|
| Maximum Reach |
13 ft 5.0 in |
(4,090 mm) |
| Maximum Reach at Ground Level |
13 ft 2.9in |
(4,035 mm) |
| Maximum Digging Depth |
7 ft 10.0 in |
(2,390 mm) |
| Maximum Vertical Digging Depth |
6 ft 9.1 in |
(2,060 mm) |
| Maximum Dig Height |
12 ft 3.2 in |
(3,740 mm) |
| Maximum Dumping Height |
8 ft 10.5 in |
(2,705 mm) |
| Front Swing Radius |
4 ft 10.3 in |
(1,480 mm) |
| Front Swing Radius with Boom Offset |
3 ft 9.4 in |
(1,155 mm) |
| Tail Swing (Slew) Radius |
3 ft 6.3 in |
(1,075 mm) |
| Transport Length |
12 ft 8.3 in |
(3,870 mm) |
| Transport Height |
7 ft 4.8 in |
(2,255 mm) |
| Ground Clearance |
8.1 in |
(205 mm) |
| Undercarriage Length |
4 ft 11.9 in |
(1,520 mm) |
| Track Width (Rubber) |
9.0 in |
(230 mm) |
| Undercarriage Width – Track Retracted |
38.6 in |
(980 mm) |
| Undercarriage Width – Track Extended |
51.2 in |
(1,300 mm) |
