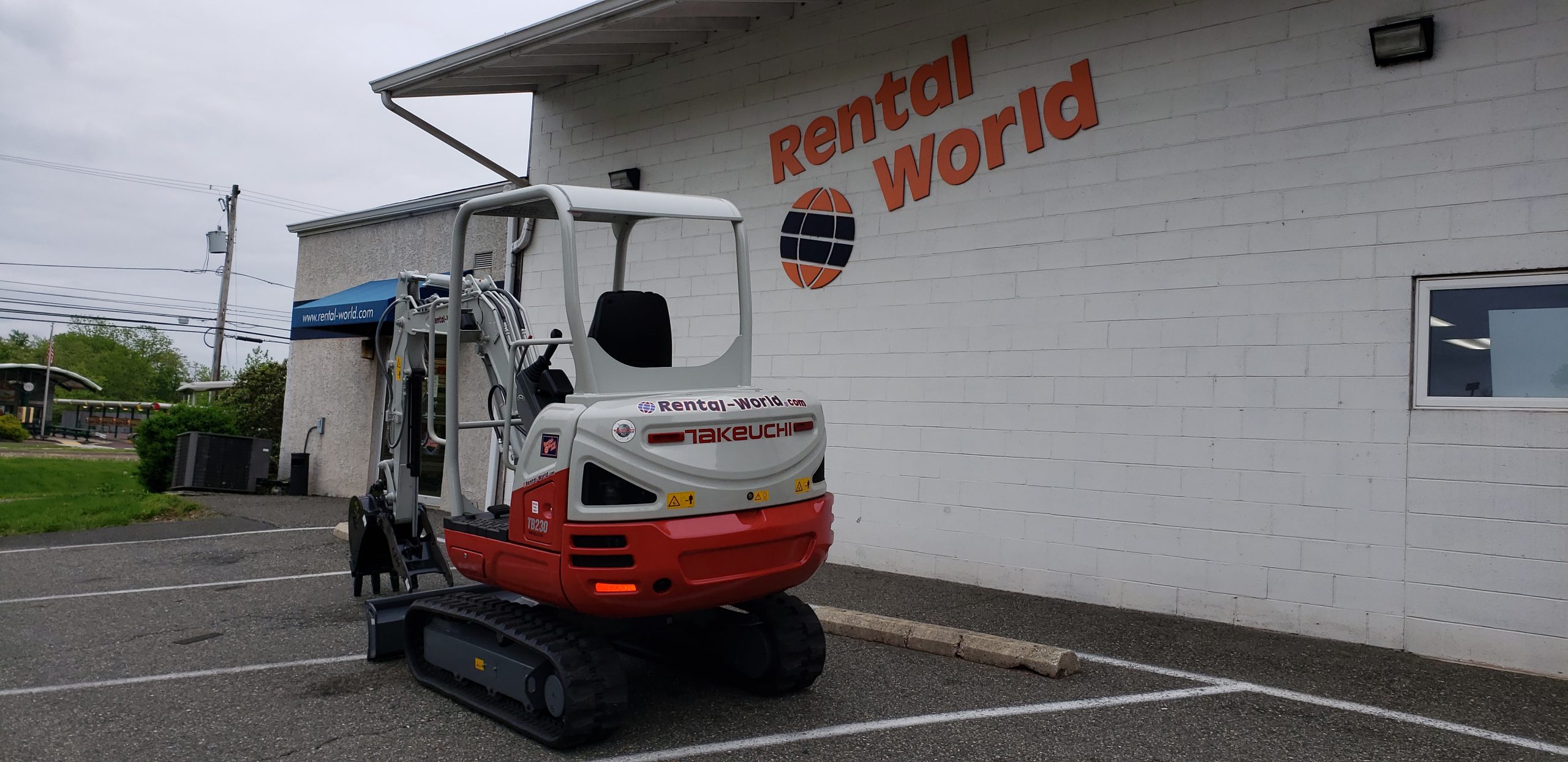

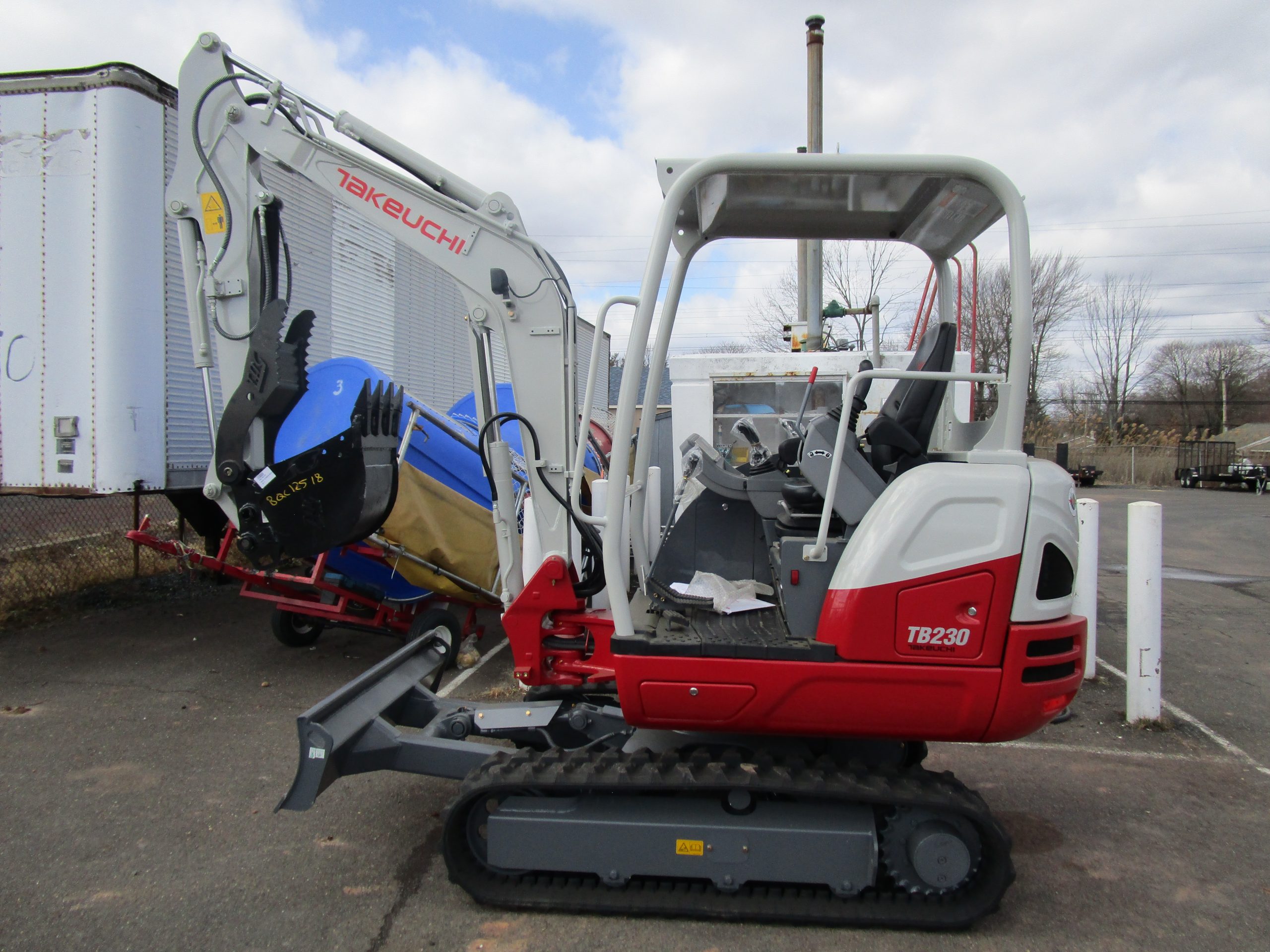

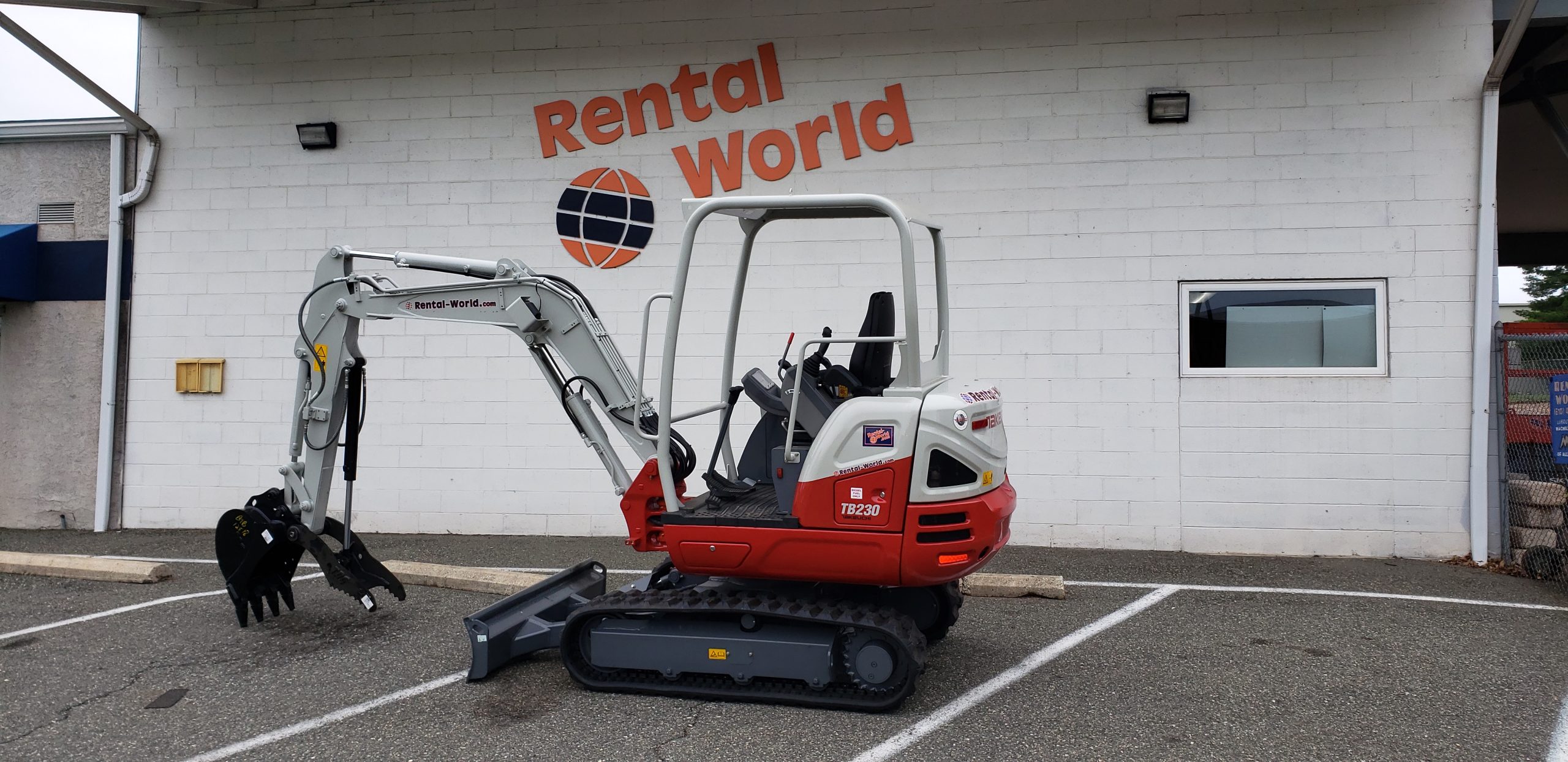

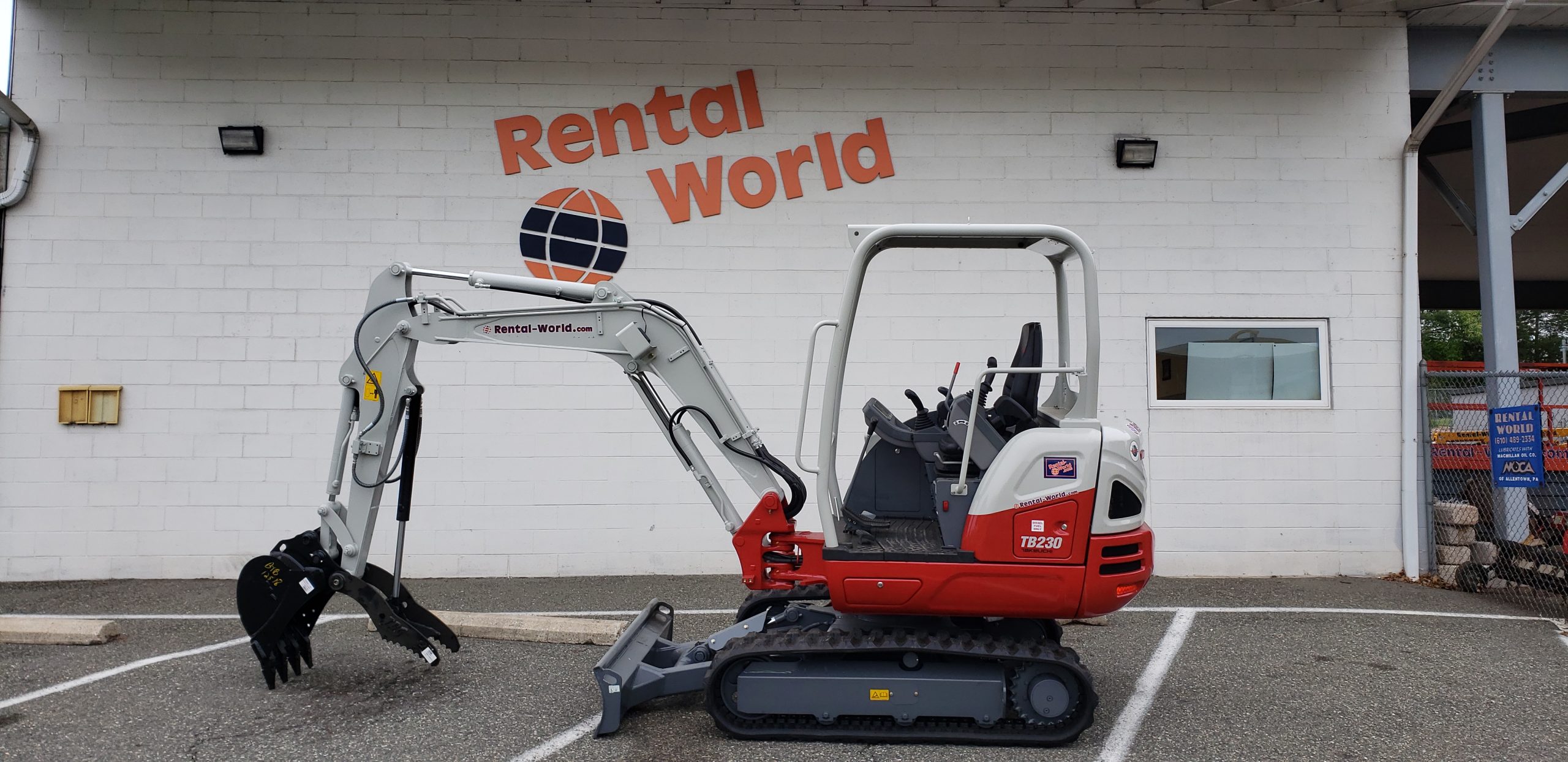

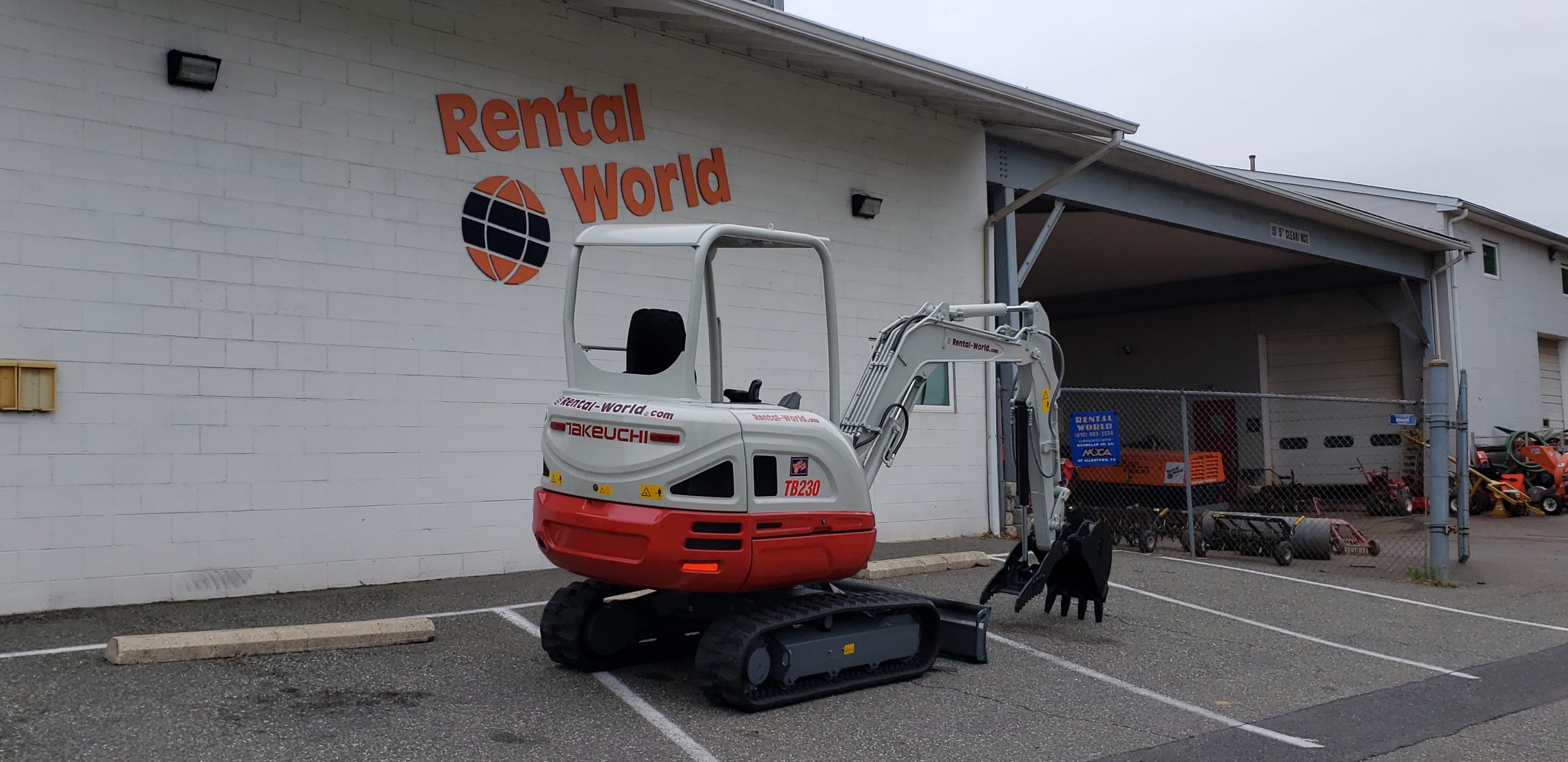

Excavator – Takeuchi Model 230R with Thumb



With it’s narrow width the TB230 is able to work on job sites with limited accessibility and the conventional tail swing design provides excellent stability and greater operator space.  The control valve and hydraulic components are now conveniently located under the right side cover for improved accessibility.  The electronic throttle control makes it easy to set the throttle to the desired position for operation.  Powerful arm crowd and bucket breakout forces provide an outstanding blend of performance, speed and versatility.  The dual pin position bucket allows more flexibility to adapt to varying job conditions.  Hydraulic flow can be adjusted from the comfort of the operator’s seat.  Additionally two way auxiliary hydraulics are plumbed to the arm for greater attachment versatility.



Maximum Reach 15 ft 10.9 in (4,850 mm)
Maximum Reach at Ground Level 15 ft 5.4 in 4,710 mm
Maximum Digging Depth 9 ft 3.6 in (2,835 mm)
Maximum Vertical Digging Depth 7 ft 0.8 in (2,153 mm)
Maximum Dig Height 14 ft 7.0 in (4,450 mm)
Maximum Dumping Height 10 ft 7.2 in (3,230 mm)
Front Swing Radius 6 ft 2.7 in (1,895 mm)
Front Swing Radius with Boom Offset 4 ft 11.2 in (1,505 mm)
Tail Swing (Slew) Radius 4 ft 4.4 in (1,330 mm)
Transport Length 15 ft 0.9 in (4,595 mm)
Transport Height 8 ft 3.9 in (2,540 mm)
Ground Clearance 11.9 in (305 mm)
Undercarriage Length 6 ft 2.9 in (1,900 mm)

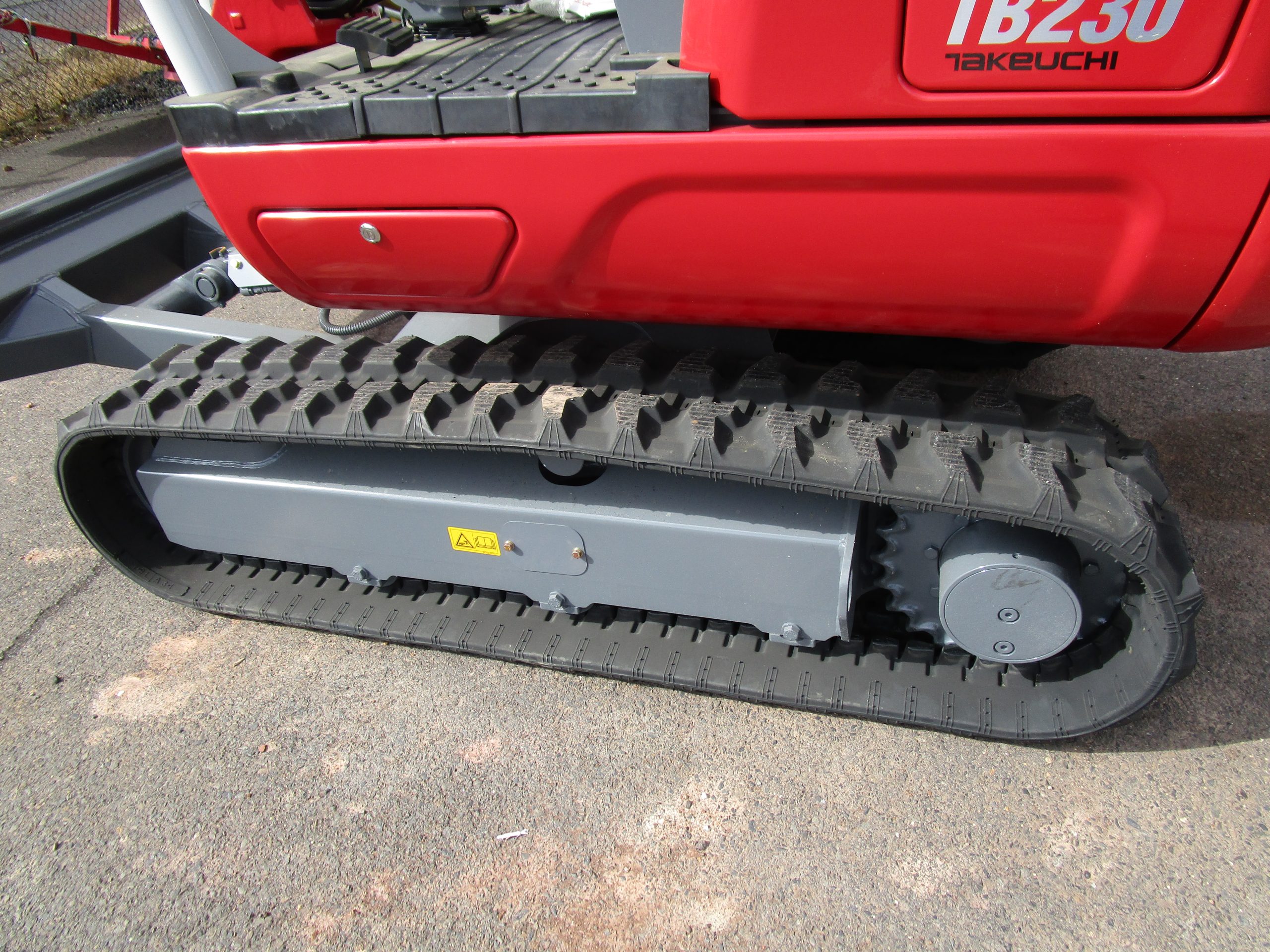

Track Width (Rubber) 11.8 in (300 mm)
Undercarriage Width 4 ft 9.5 in (1,460 mm)


Dimensions:      W 4’9” x L 14.6’

Weight 6000 lbs

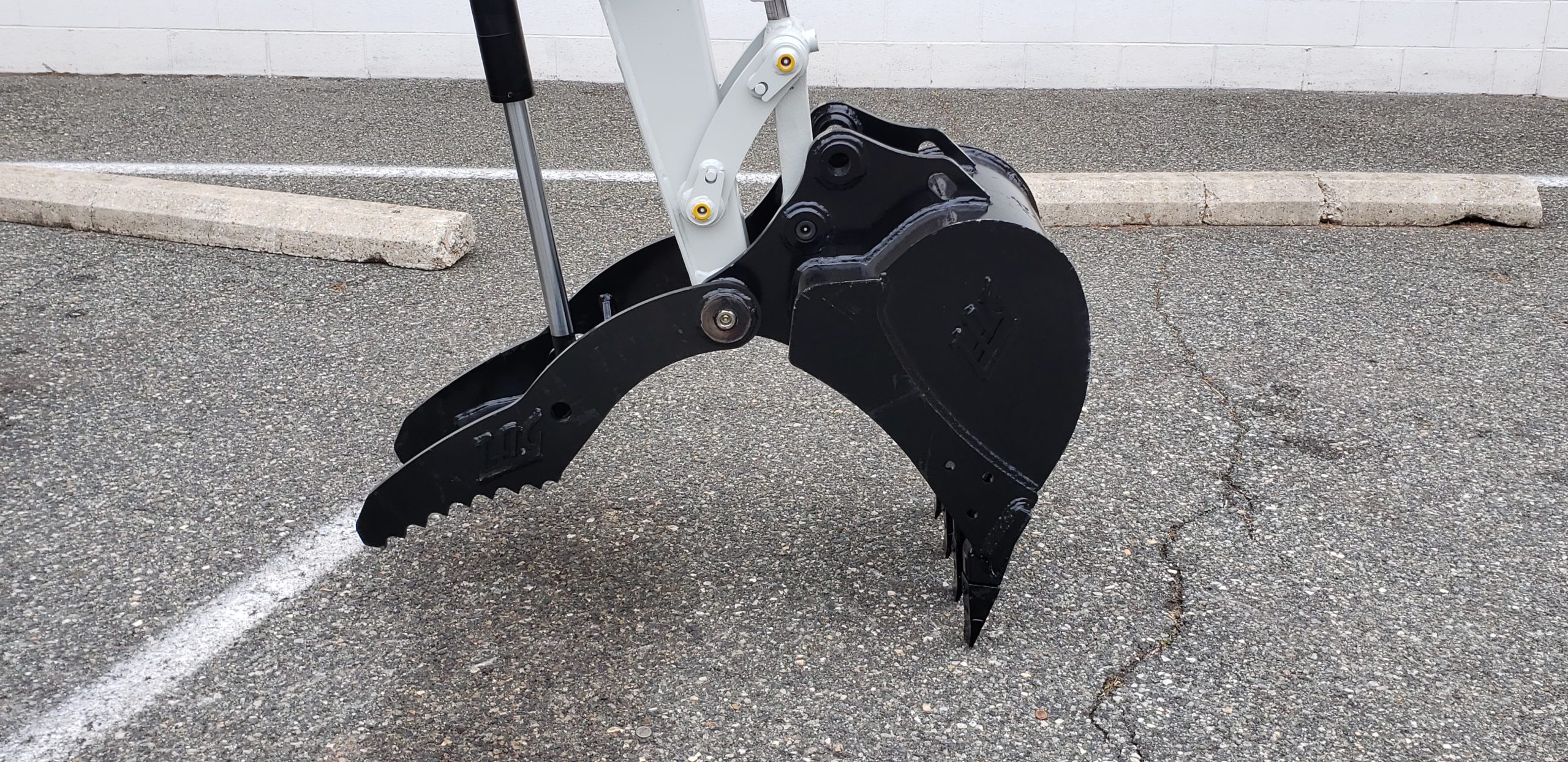

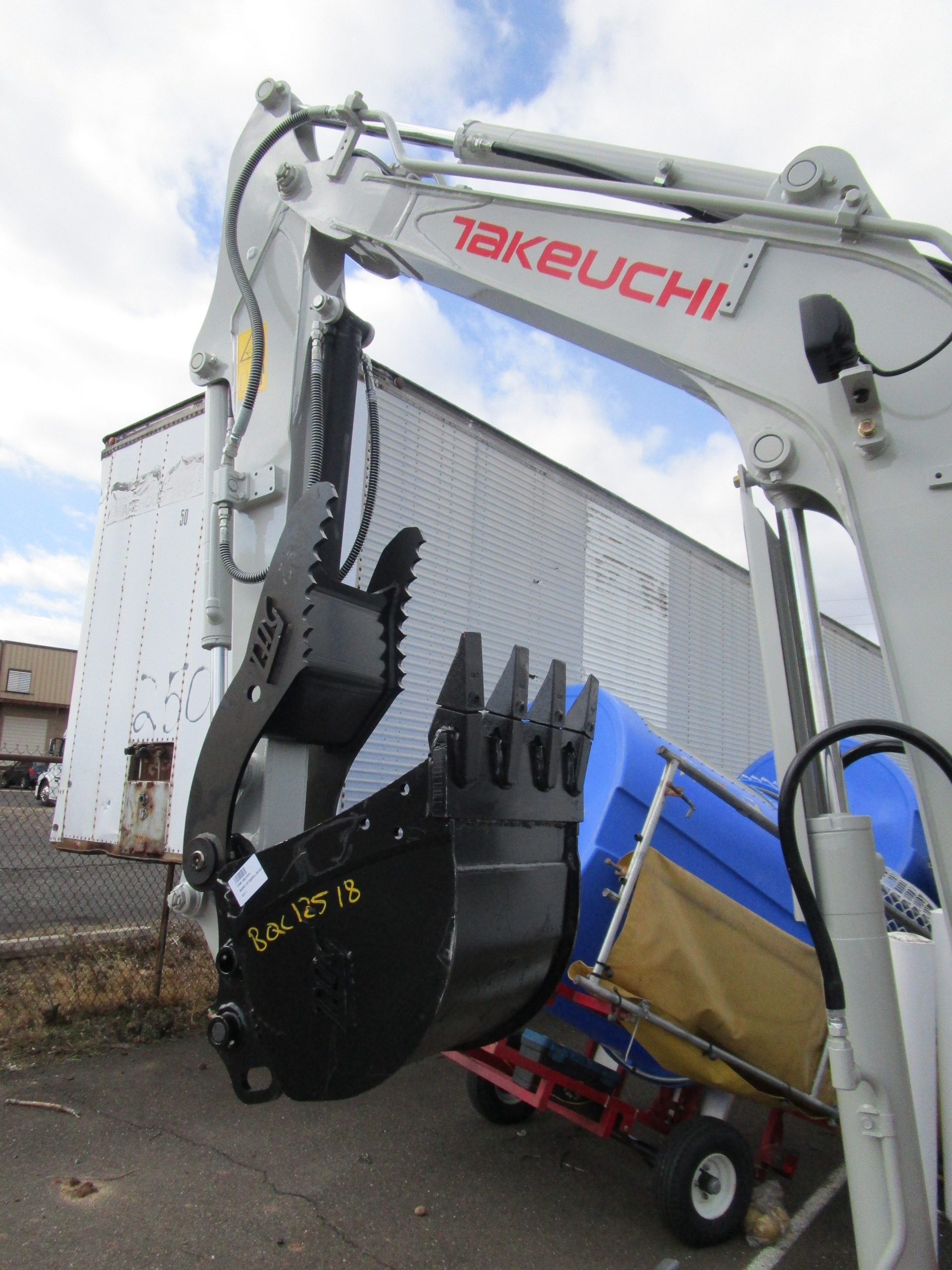

Bucket size 18”

Ground Pressure:              4 psi

Ground Clearance:           12”

Rubber Tracks:                 yes
